John Deere 1020  Parts

John Deere 1020 (1971) Gas Row Crop Utility 135 cid, snT4R1C 119022T, Engine M41TR # 179662T

Less Hi-Lo Shift or Reverser, Dry Air Cleaner, Horizontal Exhaust Manifold, Clutch Housing T21600, Transmission Case T25400, Power Steering but this tractor does not have a separate Power Steering Pump - it is part of the steering system, Differential Lock, Flange Type Rear Axle

Pictures at Bottom of Page - Factory ROPS

Welcome To Maine Tractors.com







  Click Here To View The Rest Of Our Inventory!







PART#



USED PRICE



1 AT20727 Air Cleaner Dry $50.00
1 AT21332 Cylinder Head $250.00 Casting # T19974, 300
Have 2 AT18016 Valve Cover $35.00
1 AT31250 Rocker Arm Asy $70.00 sn Break, 300
1 R82819 Camshaft $70.00 T20015, 300
Have 3 T20070 Camshaft Gear $25.00 48T
  RE21076 Connecting Rod $70.00
0 AT18031 Crankshaft $180.00 Need Casting #, T23516, T23474
Have 1 T20094 Crankshaft Gear $20.00 24T
Sold All T24441 Crankshaft Pulley $70.00 To Engine sn 28836 Up
Have 1 AR97089 Cylinder Block $600.00 R72982
Sold 1   Distributor $85.00
1 R63434 Flywheel Housing $250.00 To Engine sn 035895 Up, Casting # T25117
Sold All R56737 Engine Plate $140.00
1 AT18180 Oil Pan $95.00
1 at18178 Oil Pan $95.00 Casting # r54568
  AT18009 Idler Gear Upper $60.00 T20029, 55T
1 AT18073 Governor Asy & Case $100.00 jd 300
Have 2 AR62979 Oil Pump $25.00 Engine sn 248001 Up
  R53382 Oil Pump Cover $50.00 Engine sn Break
Have 1 R54985 Rocker Arm Asy $50.00
1 AT19508 Timing Gear Cover $40.00 Engine sn 065141 Up, pic on Timing Cover Page
Sold All T20256 Exhaust Manifold $150.00 Horizontal
Sold All AT29618 Water Pump $80.00 AT21205
Sold All   Fan $20.00
Have 1 t21687 Fan Shroud $45.00
1 AT20797 Radiator $95.00 Less Hi-Lo Shift or Reverser, jd 300
Have 1 AT41649 Clutch Housing $450.00 T21600, Independent PTO, jd 830 also
Have 1 AT19837 Clutch Release Shaft $45.00 jd 830 also
Have 1 T21999 Clutch Release Fork $30.00
Have 1 R56514 Clutch Shaft $125.00 Independent PTO, 540 RPM, 15 Spline, 16 Spline, jd 830 also
Sold All AT29754 Flywheel $230.00

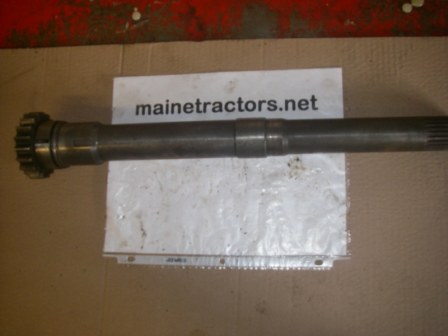

1 T42381 Clutch Power Shaft $175.00 Independent PTO, 540 RPM, Continuous Driven PTO, T22219, 23 Splines, 19T, jd 830 also
  T23011 Clutch Release Bearing Carrier $55.00 R51469
Have 1 AT43407 Transmission Case $600.00 Casting # T25400
1 T24726 Transmission Countershaft $100.00 37T, For Case T25400, Rear Pilot 1 1/4"
1 L35576 Transmission Quill $25.00 T24691, Countershaft Bearing Support
Have 1 R67341 Transmission Drive Gear $80.00 T24728, R65576, 12T, 16 Splines
2 R39796 Transmission Filter Cover $30.00 w/o Return Port
Sold All T31170 Transmission Filter Cover $50.00 with Return Port, AT30197
Have 1 AT23579 Transmission Shift Cover $60.00 T23050
1 T21975 Transmission 1st & 5th Speed Gear $50.00 20T, 40T
1 T21976 Transmission 2nd & 6th Speed Gear $50.00 36T, 20T
1 T21979 Transmission 3rd & 7th Speed Gear $50.00 20T, 31T
1 T21977 Transmission 4th & 8th Speed Gear $50.00 20T, 27T
1 T21981 Transmission Countershaft Reverse Gear $50.00 21T, 20T, jd 830 also
1 T21980 Transmission Input Shaft $150.00 12T, 23T, 28T, 18T, 14T
Have 1 T22955 Transmission Input Shaft Quill $40.00 9T
1 AT22001 Transmission Rear Oil Line $50.00
Have 1 AR96662 Transmission Oil Pump $150.00 Need Casting #, AR39053
1 T30065 Transmission Countershaft Low Range Pinion $45.00 22T, 20T
1 T32142 Transmission Shifter Fork 3rd & 7th, 4th & 8th $35.00 R59032
1 T21603 Transmission Shifter Ford 1st & 5th, 2nd & 6th $45.00 L28401
1 T21602 Transmission Shifter Fork Low & Reverse $25.00 R60556, R51233
1 AR95902 Transmission Shifter Shaft 1st & 5th, 2nd & 6th $30.00 AT20786, jd 830 also
1 AR95991 Transmission Shifter Shaft 3rd & 7th, 4th & 8th $30.00 AT20784
Sold All AR103033 Hydraulic Pump $100.00 1.38 Cubic Inch, AR39019, AR39168, AR89064, R68385
Have 2 AR62440 Hydraulic Reservoir $45.00
  L26932 Hydraulic Load Control Sensing Shaft $55.00
1 AL33044 Hydraulic Quadrant $45.00 AT24725, sn 054796 Up
Have 3 T21474 Hydraulic Ram Arm/Lever $35.00
  F2570R Hydraulic Piston Rod $25.00
1 T22318 Hydraulic Rockshaft $70.00
Have 2 T29931 Hydraulic Rockshaft Arm $60.00
Have 1 T21470 Hydraulic Rockshaft Housing $325.00 AR77179, R62595, jd 830 also
Have 1 ar63911 Rockshaft Cylinder Housing $195.00 Casting # 55137 , Sub at20197 , t21473
  R40599 Hydraulic Selective Control Valve $325.00 sn Break
    Hydraulic Rear Remote Connects $220.00
  R39170 Hydraulic Selective Control Valve Cover $65.00

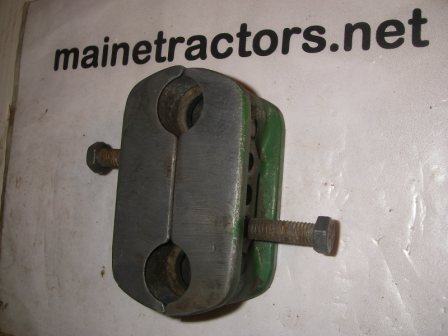

Have 1 R38348 Hydraulic Pump Coupler $5.00 each 2 piece, Set w/Bolts $10.00, sfr
Have 1 AR44551 Adjustable Lift Link $35.00 17 1/2" Long Rod
Have 2 AT56648 Draft Link $125.00 Category 1
1 at22201 Hydraulic Tube $30.00 Patched
1 at23550 Hydraulic Rear Oil Line $50.00
Sold All T25295 Steering Column Asy $780.00 AT23175, R77312
Sold All   Steering Box
Have 1 AT24986 Front Support $400.00 Need Casting #
  AT34970 Front Axle Swept $400.00 T21830, 48" - 78"
  AT22278 Front Axle Swept $400.00 44" - 66"
Have 2 T21504 Front Axle Bellcrank $95.00 Need Casting #
Sold All AT22222 Front Axle Knee LH $215.00 Need Casting #
Have 1 AT22221 Front Axle Knee RH $195.00 Need Casting #, jd 830 also
  AR103472 Front Axle Spindle $110.00 Need Casting #
Sold 1 AR103473 Front Axle Spindle $110.00 Need Casting #
Have 1 R47073 Front Axle Spindle $110.00 Casting# R47073, 11 3/4" Tall
1 T21518 Front Axle Steering Arm LH $50.00 Need Casting #
Have 1 T21517 Front Axle Steering Arm RH $60.00 Need Casting #
  AR68818 Steering Drag Link $55.00
Sold All T36482 Steering Shaft $190.00
2 T21467 Steering Shaft Cover $35.00 sn 45200 Up
Sold 1   Steering Yoke $150.00
Have 1 R47076 Front Hub $30.00
Have 1 T21620 Rear Axle Flanged $350.00 8 Bolt, 23 Splines, jd2040
Have 1 AT19628 Rear Axle Housing $350.00 RU w/o 14.9x28" Tire, Casting # T21413
2 T28907 Rear Axle Final Drive Shaft RH $35.00 12T, 23 Splines
2 T28908 Rear Axle Final Drive Shaft LH $40.00 12T, 23 Splines
Have 1 T21885 Rear Axle Planet Pinion Gear $40.00 18T, RU
1 T21415 Rear Axle Planet Pinion Carrier $75.00 Except 14.9x28" Tire, RU, 23T
1 AT21620 Differential Ring & Pinion Asy $475.00 35T, 8T
0 T26555 Differential Lock Pedal $50.00
Have 1 T22214 PTO Driven Gear $50.00 Single, 540, 73T, 21 Splines, 2020 also
Have 1 AT23224 PTO Front Drive Shaft $95.00 21 Spline, 21 Spline, jd 830 also
Have 1 R47249 PTO Rear Powershaft $135.00 21 Spline, 6 Spline
Have 1 at29707 PTO Shaft $150.00 New
  AR44552 Lift Link Asy RH $100.00 15" Long Rod, T214627, T215591, T214497
3 AT21619 Alternator $35.00
Sold All   Generator $0.00
Sold 1   Fender RH $75.00
Sold All AT18025 Starter $70.00
Have 2 AT19847 Foot Rest LH $50.00 Shell Fender, pic on floor board page
Have 2 ar65463 Foot Rest RH $100.00 pic on floor board page
  AR73848 Foot Rest RH $105.00
  T32413 Fender Extension/Spacer $55.00 Shell Fender
Sold All   Tachometer
  AT22968 Brake Valve $200.00 sn Break
Have 2 T22724 Brake Pedal RH $50.00 AT20755 sn Break
Have1 T21809 Brake Pedal LH $40.00 AT20247, sn 45208 Up
    ROPS $650.00 Has Canopy Bracket - Coll Guard





Right Hand Remote Casting # r38109, ar39036

$150.00

John Deere 1020 Pressure Control Valve r39273 $55.00

John Deere 1010 Fender Spacer l25283 $30.00

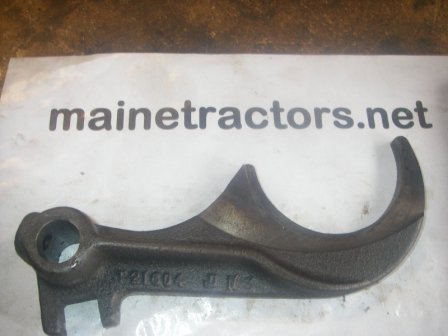

John Deere 1020 Shifter Fork t12604 $45.00

John Deere 1020 Cowl RH t22087 $50.00

John Deere 1020 Pump Coupler r38348 sfr

$10.00 set, $5.00 half

John Deere 1020 Remotes ar52621, r39109  $200.00


Please contact us if you are interested in a specific tractor part  even if it is not listed.  Whenever possible Original or Manufacturer's Part Numbers are used. Satisfaction is guaranteed on most parts for up to 90 days, this does not include freight.  The warranty does not cover original manufacturer warranty. Prices subject to change without notice.
