Farmall 350 Parts
Click Here To View The Rest of Our Inventory!
Farmall 350 Parts Tractor sn 3509s, (1957) Diesel, Manual Steering, 2 Point Fast Hitch with Traction Control
Pictures at
Bottom of Page
| Part # | Used Price | ||||
| Have 2 | 366719R | Air Cleaner | $25.00 | ||
| Have 1 | 367322R | D | Camshaft | $100.00 | |
| Sold All | 367325R | D | Camshaft Gear | $120.00 | 48T |
| Sold All | 356948r | G | Carburetor | $85.00 | |
| 6 | 367349R | Connecting Rod | $40.00 |
|
|
| Sold All | 367381R | D | Crankshaft | $125.00 | GD193 |
| 367385R | Crankshaft Gear | $100.00 | 24T | ||
| Have 1 | 367387R | Crankshaft Pulley | $30.00 | ||
| Have 1 | 367409R | Crankcase | $400.00 | ||
| Sold All | 367441R | Cylinder Head | $430.00 | ||
| Sold All | 367393R | Injection Pump | $400.00 | ||
| 8 | 367331r | Injector | $25.00 | 705640 | |

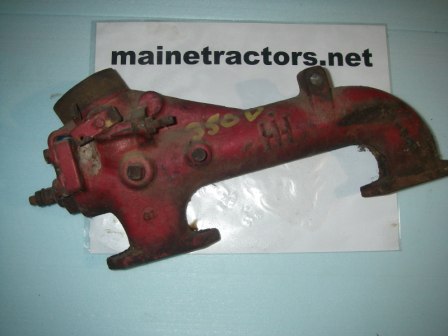

| Have 1 | 367494R | Intake Manifold | $40.00 | ||

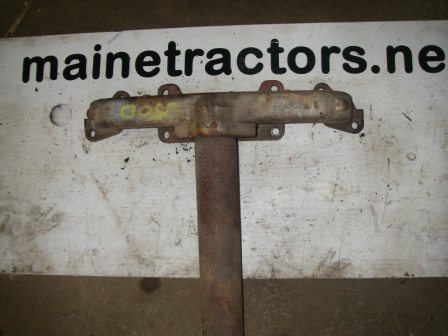

| Have 3 | 367491R | Exhaust Manifold | $45.00 | pic on manifold page | |
| Sold All | 367471R | Oil Pump | $180.00 | ||
| Have 1 | 367438R | Oil Pan | $60.00 | pic on oil pan page | |
| Have 1 | 367486r | Oil Filter Canister | $40.00 |
|
|
| Have 1 | 368284r | Fuel Filter, 2nd | $40.00 |
|
|
| Have 1 | 367396r | Fuel Filter Primary | $35.00 |
|
|
| Sold All | Pistons | $45.00 | |||
| 367430R1 | Rear Engine Plate | $50.00 | |||

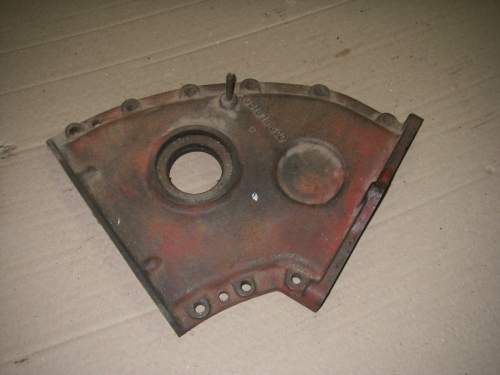

| Have 1 | 367432R91 | Timing Gear Cover | $60.00 | ||
| 1 | 367463R | Rocker Arm Asy | $40.00 | ||
| Have 1 | 367468R1 | Valve Cover | $25.00 | ||
| 1 | 367377R1 | Water Outlet | $30.00 |
Casting #
gd193k-501 |
|
| Have 1 | 367390R | Flywheel | $125.00 | ||
| Sold All | 367366R1 | G | Water Pump | $125.00 | |
| Sold All | 367368R | D | Water Pump | $100.00 | |
| 362747R | Fan Blade | $25.00 | |||
| 362830R | Fan Shroud | $45.00 | |||
| 1 | 361704R | Radiator | $140.00 | ||
| Have 1 | 361281R | Carrier, Planet Asy | $175.00 | Torque Amplifier | |
| Have 1 | 360676R | Shaft, Torque Amplifier Drive | $80.00 | ||
| Have 1 | 360653R | Fork, Torque Amplifier Clutch Release | $70.00 |
and Carrier
359900r1 |
|
| Have 1 | 359895r | Torque Amplifier Clutch Asy | $80.00 |
367910r,
360215 |
|
| Have 1 | 360503r | Clutch Release Fork | $35.00 |
|
|
| Have 1 | 360501r | Bearing Carrier | $20.00 |
|
|
| Have 1 | 360500r | Clutch Carrier | $45.00 |
|
|
| 368478R | Clutch Housing | $200.00 | Casting #360468 | ||
| 360657R | Bearing Cage | $65.00 | |||
| Have 1 | 360504R | Clutch Shaft | $30.00 | ih 460, 350, 340, 330, 300, farmall 460, 350, 340 | |
| Have 1 | 366329R | Clutch Pedal | $30.00 | ||
| Have 1 | 361800R | Gear Shift Lever | $100.00 |
|
|
| Have 1 | 361569R | Gear Shift Housing | $30.00 |
Casting #
361569r2 |
|
| 360578R | Reverse Idler Gear | $135.00 | |||
| 360577R | Reverse Idler Shaft | $50.00 | |||
| 360671R | Countershaft | $110.00 | |||
| Have 1 | 360561R | Countershaft 1st Speed Gear | $45.00 | 26T | |
| Have | 360562R | 2nd Speed Gear | $75.00 |
34T , 17 Splines |
|
| Have 1 | 360563R | 3rd Speed Gear | $80.00 | 40T, 17 Splines | |
| Have 1 | 360566R | 4th Speed Gear | $75.00 | 45T | |
| 1 | 360567R | Constant Mesh Gear | $80.00 |
61T, 17 Splines, ih 460 also |
|
| Have 1 | 360491R | Transmission Main Drive Shaft | $75.00 | 656, 330, 340 also | |
| 362569R | Transmission Shaft w/ Pinion | $110.00 | 15T | ||
| Have 1 | 360573R | 1st & Reverse Sliding Gear | $95.00 |
55T |
|
| Have 1 | 360564R | 2nd & 3rd Sliding Gear | $40.00 |
47T, 41T, 17 Splines |
|
| Sold All | 360574R | 4th & 5th Sliding Gear | $355.00 | 36T, 20T | |
| 360579R | 1st & Reverse Fork | $60.00 | |||
| 0 | 360581R | 2nd & 3rd Shift Fork | $55.00 | ||
| Sold All | D | Hydraulic Pump | $530.00 | ||
| Sold All | D | Hydraulic Manifold | $0.00 | ||
| Have 4 | 365981r | D | Hydraulic Valve | $100.00 | 360587r , 365447r |
| Have 1 | 360590r | D | Hydraulic Valve | $125.00 | |
| Have 1 | 365985r | D | Hydraulic Valve | $125.00 | |
| 3 | 360622r | D | Regulator/Safety Valve | $95.00 | 360621r |
| Have 3 | 363452r | D | Check Valve | $85.00 | |
| Have 5 | 362705r | D | Check Valve | $60.00 | Single Acting |
| Have 5 | 361650r | D | Hydra-Touch Lever | $45.00 | |
| Have 1 | 362567R | D | Hydraulic Valve Handle LH | $30.00 |
|
| Have 1 | 361639R | D | Hydraulic Valve Handle RH | $20.00 |
|
| Have 1 | 361645R | D | Hydraulic Valve Handle Rear | $40.00 |
|
| Have 2 | 350701r | Hydraulic Tube | $85.00 | ||
| 1 | 356779r | Hydraulic Tubes w/Valve Block | $95.00 | pic on super c page | |
| Have 1 | 366968r | Hydraulic Tubes w/2 Flanges | $95.00 | ||
| Have 1 | 365920r | Hydraulic Tube to Valve Block LH | $25.00 |
Repaired |
|
| Have 1 | 365913r | Hydraulic Tube to Valve Block RH | $25.00 |
Repaired |
|
| Have 1 | 365916r | Remotes Manifold Bracket | $25.00 |
|
|
| Sold All | 366963r | Hydraulic Pressure Pump to Mid Manifold | $50.00 | ||
| Have 1 | 366962r | Hydraulic Suction from Pump | $50.00 | ||
| Have 1 | 361617r | Hydraulic Tube Rear Block | $50.00 | ||
| Have 1 | 367435r | Hydraulic Pump Adapter | $35.00 |
Includes neck
367437r, cap 361559r |
|
| 0 | 360398r | D | Wide Front End | $500.00 | |
| Sold All | Steering Box | ||||
| 1 | 365423r | Power Steering Pump | $130.00 | Pic on Steering Pump Page, Behlen 2041-18 | |
| Have 1 | 366565R | Steering Shaft Support | $85.00 |
Casting #
351743r2 |
|
| 361519R | Steering Column | $135.00 | |||
| Have 1 | 50047D | Steering Worm Shaft | $60.00 | farmall h | |
| Have 1 | 69060D | Steering Upper Bolster | $80.00 |
|
|
| Have 1 | 6688D | Steering Lower Bolster | $100.00 | farmall h | |
| 1 | 367044R91 | Front Frame Channel RH | $85.00 | For Diesel | |
| 1 | 367043r91 | Front Frame Channel LH | $85.00 |
For Diesel |
|
| 366556R11 | Steering Shaft | $70.00 | |||
| 1 | 50038db | Steering Gear | $35.00 |
|
|
| 0 | 366695R | Steering Arm | $125.00 | Casting #448511, 11" | |
| Sold All | 8274D | Front Hub | $60.00 | farmall h | |
| 362570 | Differential Ring & Pinion Asy | $575.00 | |||
| Have 2 | 360542R2 | Rear Axle Carrier RH | $210.00 | 2 1/2" | |
| Have 1 | 360541R1 | Rear Axle Carrier LH | $240.00 | 2 1/2" | |
| Have 2 | 360544R2 | Rear Axle | $80.00 | 2 1/2", 38 13/16", Keyed, 14 Splines | |
| 360552R95 | Rear Frame | $540.00 | Casting # 360553 | ||
| 361921R31 | Rear Frame Cover | $120.00 | |||
| 360731R9 | PTO Asy | $350.00 | Transmission Driven | ||
| Sold All | 358841R11 | PTO Cover | $80.00 | ||
| 66372D | PTO Shifter Tube | $140.00 | Transmission Driven | ||
| 66368D | PTO Shaft | $135.00 | Transmission Driven, 1 3/8", 6 Spline, 34 3/4" Long | ||
| 360733R | PTO Housing | $105.00 | Independent | ||
| 523870R9 | Fast Hitch Bail Asy | $265.00 | |||
| 1 | 523089R | Drawbar | $100.00 | ||
| 522813R9 | Fast Hitch Socket Beam LH | $160.00 | |||
| Have 1 | 522814R9 | Fast Hitch Socket Beam RH | $90.00 | 330, 340, 350, 460 also | |
| 1 | 522997R1 | Fast Hitch Lift Link LH | $30.00 | 330, 460 also | |
| 523095R9 | Rockshaft Asy | $220.00 | |||
| Have 1 | 522732r | Rockshaft Bearing Plate | $55.00 |
Casting #
522732r2 |
|
| 366275R9 | Hydraulic Cylinder | $340.00 | 8" x 3 1/2" | ||
| 355515R | D | Hydraulic Pump | $445.00 | Pesco | |
| 363779R | Hydraulic Pump | $445.00 | Thompson | ||
| 351880R9 | Seat Pan | $40.00 | |||
| 356891R93 | Seat Bracket | $70.00 | |||
| 352599R94 | Seat Bracket Support | $40.00 | |||
| 354670R2 | Seat Spring | $10.00 | |||
| 351750R93 | Seat Shock Absorber | $30.00 | |||
| 355750R12 | Seat Mounting Plate | $40.00 | |||
| 362059R92 | Battery Box | $95.00 | |||
| 358275R11 | Battery Box Cover | $50.00 | |||
| Sold All | G/D | Alternator | $0.00 | ||
| Have 1 | 361548r | Channel End Cap/Dash Light Cover | $40.00 |
|
|
| Have 1 | 366685r | Emblem | $25.00 |
|
|
| Have 2 | 51500D | Fender | $50.00 | ||
| Sold All | 366769R9 | D | Generator | $95.00 | |
| 1 | 366770R | D | Starter | $50.00 | 12 Volt |
| Sold All | 364393R91 | D | Tachometer | $70.00 | |
| 1 | 366309r | D | Dash | $40.00 |
 |
| Sold All | 361541r12 | Grill | $125.00 | ||
| 360638R11 | Brake Pedal LH | $25.00 | |||
| 360639R1 | Brake Pedal RH | $45.00 | |||
| 358046R2 | Brake Housing | $60.00 | |||
| 364834R91 | Brake Actuating Asy | $110.00 | |||
| 358053R1 | Brake Lever Shaft | $45.00 | |||
| 358051R1 | Brake Shaft | $40.00 |
|
|
|
Farmall 350 Hitch Cylinder 360997r91 $175.00 |
 |
|
Farmall 350 Oil Filter Canister 367486r91 $40.00 |
|
|
|
Farmall 350 2nd Fuel Filter 368284r91 |
|
|
|
Farmall 350 Primary Fuel Filter 367396r91 |
|
|
|

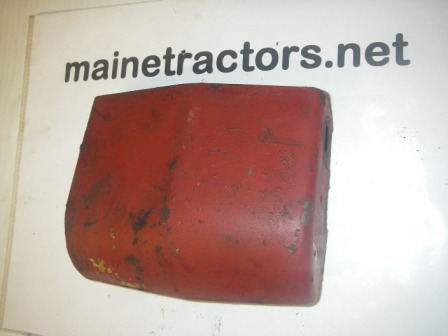

Farmall 350 Channel End Cap/Dash Light Cover 361548r1 $30.00 |
|
|
|
Farmall 350 RH Remotes Manifold 365913r91 $25.00 (Repaired) |
|
|
|
Farmall 350 LH Remotes Manifold 365920r91 $25.00 (Repaired) |
|
|
|

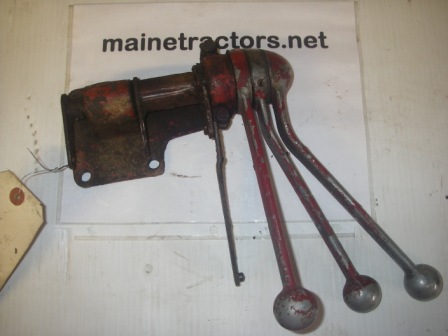

Farmall 350 Control Bank 361640r91, 361632r11 362567r91, 361639r1, 361645r11 $100.00 |
|
|
|

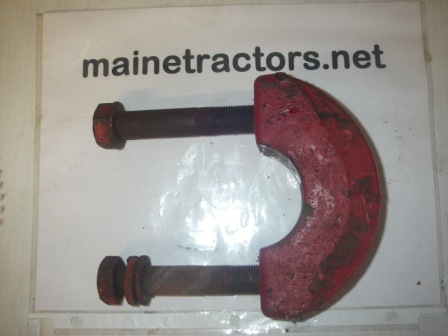

Farmall 350 Wheel Axle Clamp 363020r1 $25.00 |
|
|
|

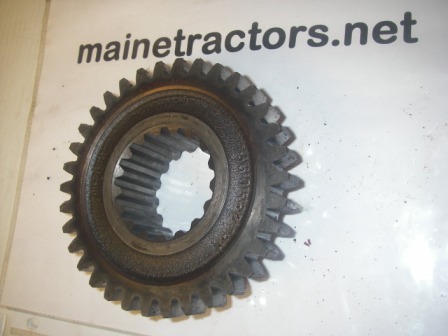

Farmall 350 Driving Gear 2nd Speed 360562r1 34t $75.00 |
|
|
|

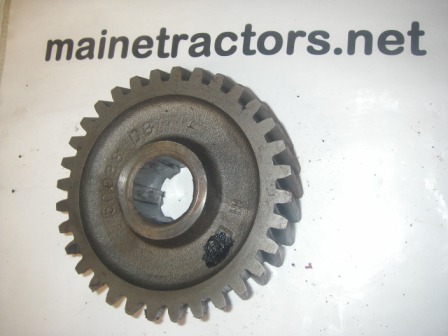

Farmall 350 Steering Gear 50038db 32t $35.00 |
|
|
|

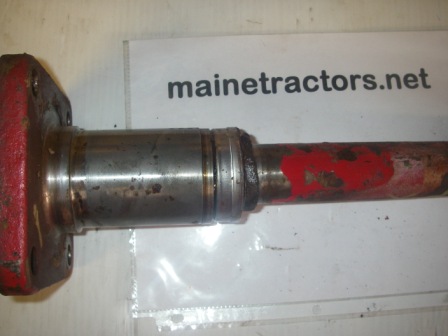

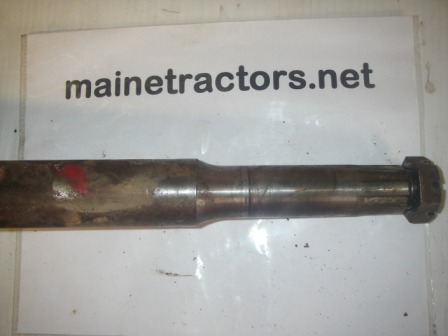

Farmall 350 Upper Bolster Shaft 69060d $80.00 |
|
|
|
|
|

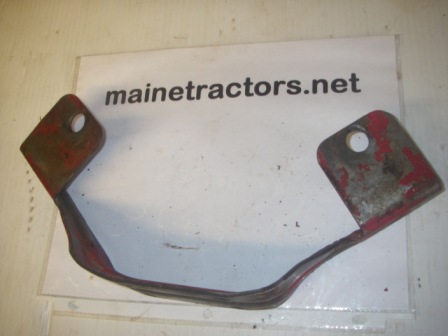

Farmall 350 Remotes Manifold Bracket 365916r1 $25.00 |
|
|
|

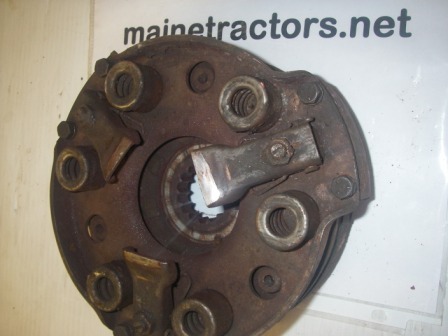

Farmall 350 Torque Amplifier Clutch Asy 359895r3, 367910r91, 360215r92 $80.00 |
|
|
|

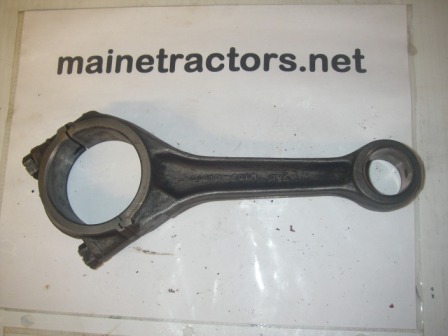

Farmall 350 Connecting Rod 367349r91 Continental # g1810-501m $40.00 |
|
|
|

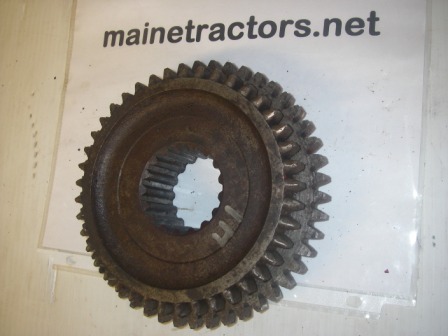

Farmall 350 Sliding Gear 360564r1 47t, 41t $40.00 |
|
|
|
Farmall 350 Fork & Carrier 359900r1 & 360653r1 $70.00 |
|
|
|

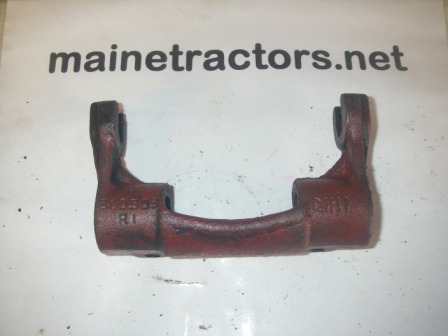

Farmall 350 Fork 360503r1 $35.00 |
|
|
|

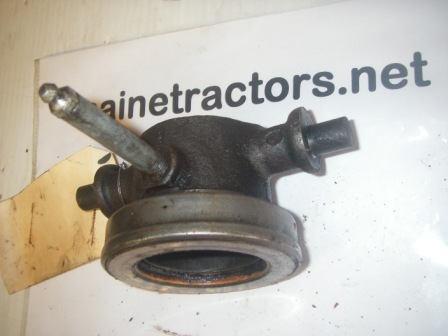

Farmall 350 Bearing Carrier 360501r1 $20.00 |
|
|
|

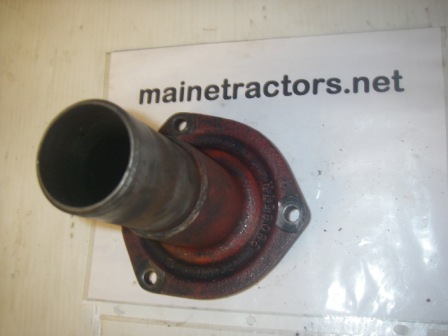

Farmall 350 Clutch Carrier 360500r Casting # 360357r2 $45.00 |
|
|
|

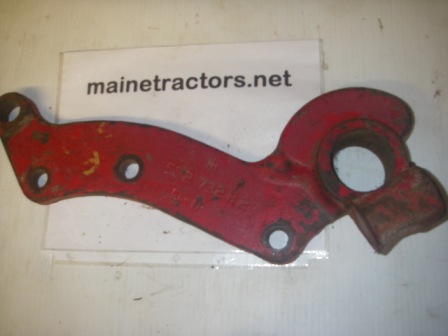

Farmall 350 Rockshaft Bearing Plate 522732r21 Casting # 522732r2 $55.00 |
|
|
|
Farmall 350 Water Outlet Elbow 367377r1 Casting # gd193k-501 $30.00 |
|
|
|

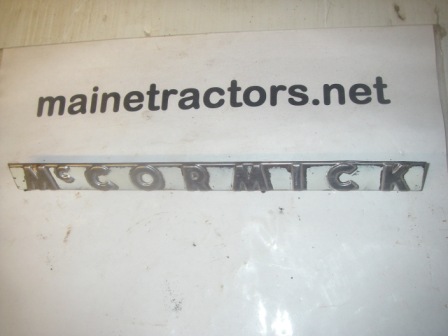

Farmall 350 Emblem 366685r1 $25.00 |
|
|
|

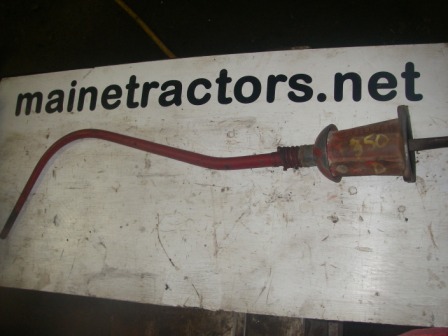

Farmall 350 Shift Lever Asy 361800r12, 361569r21 Casting # 361569r2 $125.00 |
|
|
|

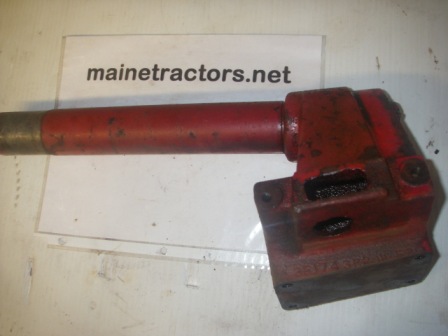

Farmall 350 Steering Support Tube 366565r91 Casting # 351743r2 $65.00 |
|
|
|

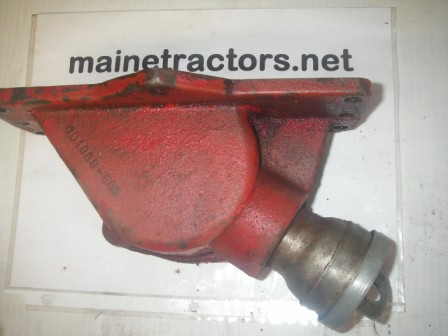

Farmall 350 Hydraulic Pump Adapter 367435r1 367437r91, 361559r91 Casting # gd193b-500 $35.00 |
|
|
|

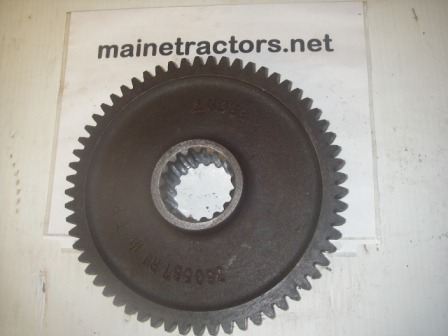

Farmall 350 Constant Mesh Gear 360567r1 61t $80.00 |
|
|
|

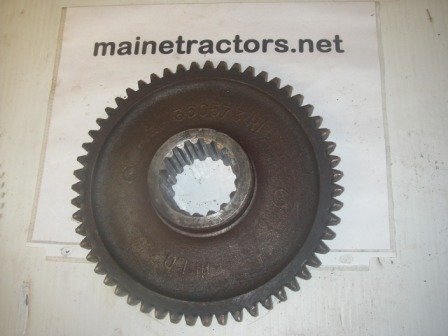

Farmall 350 Sliding 1st Gear 360573r1 55t $95.00 |
|
|
|

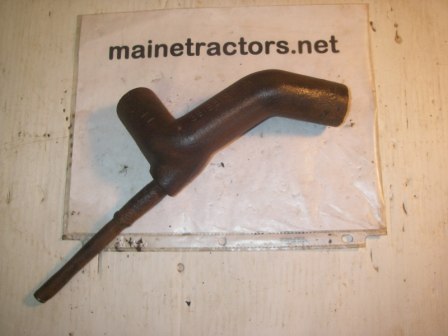

Farmall 350 Gas Water Elbow 361981r1 $25.00 |
 |
 |
|
Farmall 350 Frame LH 367043r91r $85.00 RH 367044r $85.00 |
 |

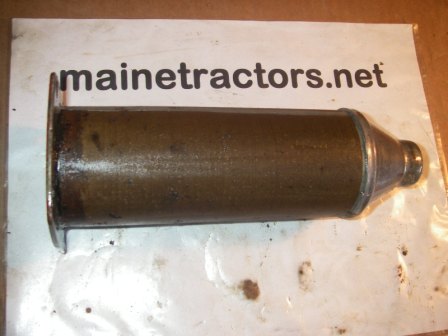

| Farmall 350 Hydraulic Screen 361435r91 $25.00 |
 |

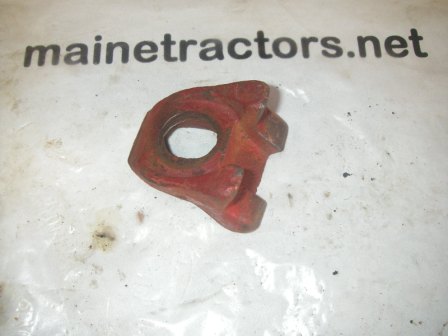

| Farmall 350 Rim Clamp 363016r1 $10.00 |
|
Please contact us if you are interested in a specific tractor part even if it is not listed. Whenever possible Original or Manufacturer's Part Numbers are used. Satisfaction is guaranteed on most parts for up to 90 days, this does not include freight. The warranty does not cover original manufacturer warranty. Prices subject to change without notice. |
